Quick Details

  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: Victor
  • Model Number: MSZ
  • Shaping Mode: injection blow mould
  • Product Material: Steel
  • Product: Household Product
  • mould parts process on: imported CNC equipment
  • mould cavity: 3Cr13 Stainless steel,hrc52
  • mould neck ring: Germany 2083 Stainless steel,
  • mould hot runner: stainless steel
  • mould type: plastic injection blow mould
  • mould runner method: autometic
  • mould design: according to customer sample or drawing
  • Core rod: 9Cr18 steel,heat treated to HRC52
  • suitable bottle range: 5-800ml
  • max.bottle height: 200mm

Packaging & Delivery

Packaging Details Seaworthy wooden case

Product Description



jiangsu blow moulding for plastic bottle plastic injection blow moulding plastic blow mould



Mould cavity and core rod deatils pictures





Characteristics
1, Moulds are suitable for MSZ serial manchine,also spercial designed for JOMAR & UNILOY machines.

2, Experienced mould design and high precision tooling.



3, High hardness treatment and high service life.



4, Injection mold and blowing mold are made of 3Cr13 Stainless steel,also an optional Magnalium blow mold.

They are processed by special  high precision numerical control equipment and fully guarantee the forming quality of bottle product.



Mould Material



ItemMaterial
Mould body4Cr13(HRC45-48)/ Magnalium 7075
Preform neck insertsS136/ Germany 2083(HRC52)
Blow neck inserts3Cr13(HRC52)
Core rods4Cr13 (HRC48)
Mould baseStainless steel
Hot runner mainfold4Cr13 (T235)



jiangsu blow moulding for plastic bottle plastic injection blow moulding plastic blow mould

Flow chat to order a mould





jiangsu blow moulding for plastic bottle plastic injection blow moulding plastic blow mould

    Sample  Pictures







Packaging & Shipping

jiangsu blow moulding for plastic bottle plastic injection blow moulding plastic blow mould

Shipping and payment

Packing

Export standard package

MOQ

1 set

FOB price

Please contact for new price

Delivery time

45-60days

FOB port

Shanghai

Payment terms

T/T,L/C







Company Information

jiangsu blow moulding for plastic bottle plastic injection blow moulding plastic blow mould

   Factory Show

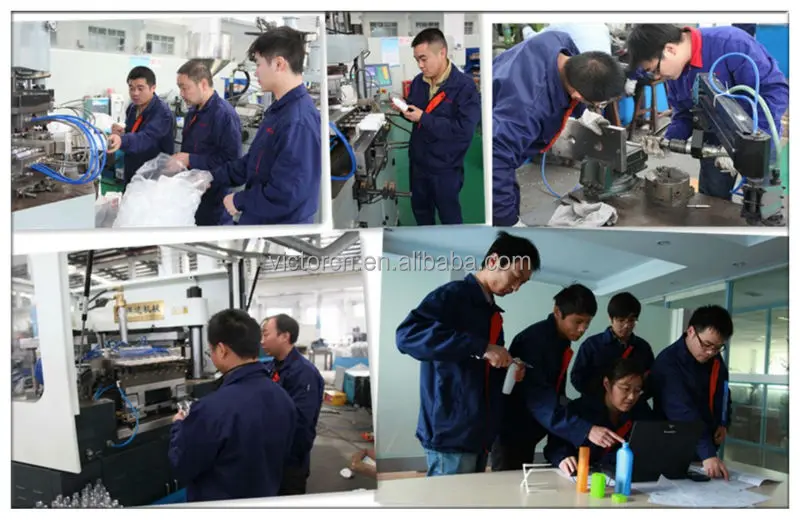

Workshop quality control



   Exhibition

   certificates









Guarantee

jiangsu blow moulding for plastic bottle plastic injection blow moulding plastic blow mould



1.if you are not satisfied with the sample, we can send the sample to you again for  free.



2.If you received the goods are not the same as the sample, we accept the goods refunded ,and all the shipping freight charge at our side.Also we will refund all the  money to your account.



 3.If you found have some parts of bad quality products , then we will accept to send  the good quality one to you again.



4.If you meet some shipping transportation problems,we can help you to solve at first time.



5.If you have any questions, you can call me at any time,24h severice available for you.
